FCT93 series

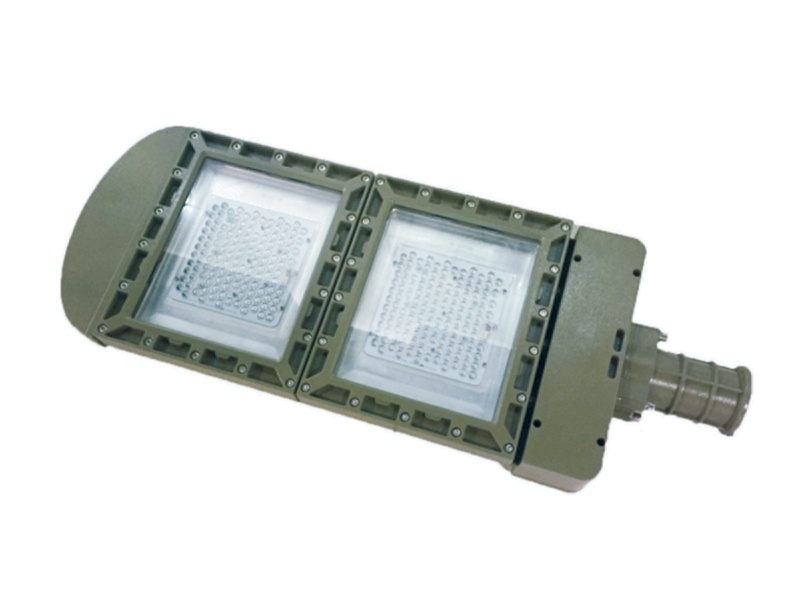

Explosion-proof LED lights (Type B)

1.widely used in oil extraction, oil refining, chemical industry, military and other dangerous environment and offshore oil platforms, oil tankers and other places for common lighting and working lighting.

2.Suitable for lighting energy saving renovation project and the replacement of difficult places;

3.Suitable for explosive gas environment zone 1, zone 2;

4. Explosive atmosphere: class ⅡA,ⅡB, ⅡC

5. Suitable for combustible dust environment in the area 22, 21;

6. Suitable for high protection requirements, damp places;

7. Suitable for low temperature environment above -40℃.


Message

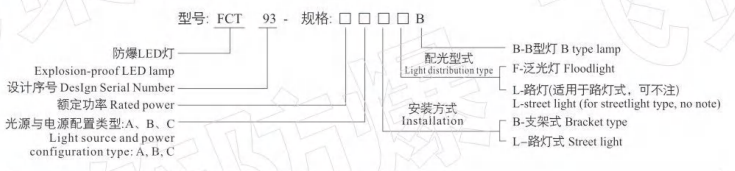

Model Implication


Features

1. Aluminum alloy die-casting shell, the surface is electrostatically sprayed, and the appearance is beautiful;

2. The radiator is stretched from a tensile aluminum alloy material with high thermal conductivity and good heat dissipation effect;

3. Optional bracket or street lamp connection sleeve can be selected to meet the lighting needs of various places, and it is easier to overhaul and upgrade.

4. The street lamp design is designed according to the two lanes of the main road of the city, with large illumination area and uniform illumination;

5. Explosion-proof and potted composite explosion-proof structure, excellent explosion-proof performance and electrical performance;

6. Stainless steel exposed fasteners with high corrosion resistance;

7. Tempered glass transparent cover, atomized anti-glare design, can withstand high energy impact, resist heat fusion, light transmittance up to 90%;

8. Advanced drive power technology, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions;

9. Multiple international brand LED modules, secondary optical distribution system designed by professional optical software, uniform and soft light, light effect ≥120lm/w, high color rendering, long life, green and environmental protection;

10. Advanced sealing technology to ensure normal long-term operation in high-protection and humid environments;

11. Uniquely designed bracket adjustment mechanism that adjusts the illumination angle as required.

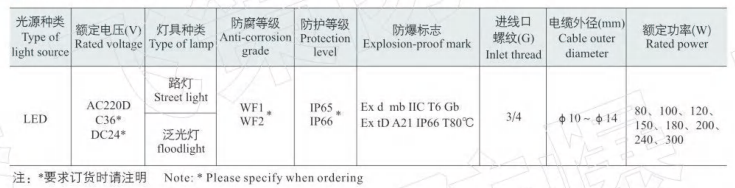

Main Technical Parameters


Order Note

1. Select one by one according to the rules in the meaning of the model specifications, and add the explosion-proof mark after the meaning of the model specification. The specific embodiment is: "product model - specification code + explosion-proof mark + order quantity". For example, an explosion-proof LED floodlight 100W, bracket-mounted, and 20 sets are required. The model number is: "Model: FCT93-Specification: 100BFB+Ex d mb IIC T6 Gb+20. ”

2. See P431~P440 for the selected installation form and accessories.

3. If there are special needs, please specify in the order.
